Features

Characteristic of heat transfer films
1\Be good of adhesive force,with good performance of sticking
2\Strong covering power
3\Good washing resistance and sunlight resistance
4\Pattern is vivid and realistic
5\Color is bright and beautiful
6\Little color distortion
7\Good effect of gradient

The way to making plate:
Plate making,in fact is the electric carving plate,some factories will call it copper mold\gravure or steel plate.Below is some details about how to make electric carving plate:
1.We will cut the size we need from one piece of big iron sheet(length 10M width 2M thickness 0.4M),our regular size is 45CM*46CM.
2.The iron sheet we cut will roll up in a cylinder,which can called iron plate.In this process,need to polish the iron sheet continuously,or the plate surface will become not flat which may affect the printing quality.
3.Make Electric welding on the connection of the cylinder iron plate.
Above three steps we call it plate rolling.The weight of a common plate is about 20kg.
4.Need to polish the iron plate again after electric welding as it will become rusty in the process of transportation or storage.It can remove the rust when polishing,and it need one time rough grinding and two times more for fine grinding.
5.After finish grinding,we need to check the surface of the plate whether somewhere is concave or convex.If have then need to polish again,either go into next step.
Step 4 and step 5 we call it grinding.It takes about 40min to 1 hour to finish one plate grinding.
6.Copper plating.Need to plate the iron with a layer of about 4um thickness copper , as the pattern will be carved on the copper surface.It takes about 20-40 min for one plate.
7.After finish copper plating need to check the plate surface again.If no problem then go into next step.
Step 6 and step 7 we call it electroplate.It has been copper plate after finish these two steps.
8.After confirm the copper plate, it will carve the designs by our imported advanced electric carving machine according to the color separation in advance.Each color will be engraved on different plate.
9.Now comes to the last process:chrome-plating.It's the second time of electroplate.
10.It need the final quality check after finish above all steps.If no problem then can start printing.
In China,95% of heat transfer printing factories will outsource the electric carving plate to other plate making factories.But our factory,Aeon Printing Materials Co.,LTD,can complete the whole process from plate making to finish printing .In this mode of operation,it will give you more guarantee.Firstly,your information will keep well in our factory and your secret new design won't give away.Secondly,it can save the production time as we can finish whole process.

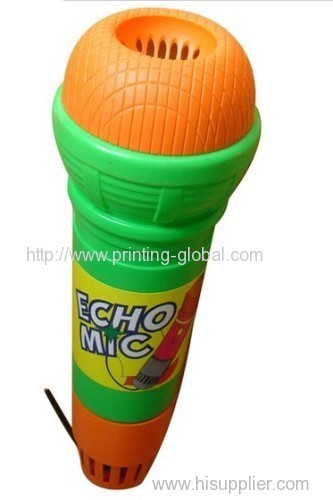

Heat transfer printing toy microphone


Hot stamping toy microphone


Heat transfer film for microphone of children toy


Hot stamping foil for microphone of children toy


About Aeon Printing Materials Co,.Ltd
The gate of us


The film making of us


Why choose Aeon Printing Materials Co,.Ltd?
More than 10 years of professional plate making and printing experience
● Only with price performance that will have competitive power
Our own factory\fully equipment\professional quality and cheapest price become our core competitiveness.
● Produce good quality heat transfer products
It attributes professional management team and advanced production equipments to the strong guarantee of our excellent products.
● One-stop service for the clients: Make you relieved\comfortable and no worry.
We provide one-stop service from the design\production\post processing till delivery. We hope to start sincere cooperation with you to create a win-win future.
● Warmly welcome to visit us and have the business meeting.Contact us immediately without any hesitate!

Welcome to contact us if you want to know more about our heat transfer film and heat transfer machine.
